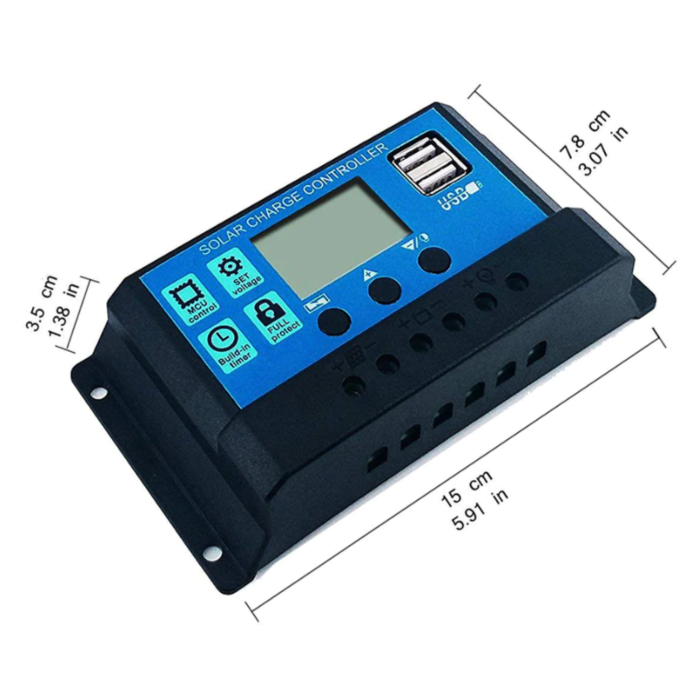

Solcelle regulator PWM 12V/24V 20A
Battery Voltage
12V 24V Auto
Charging Current
20A
Discharging Current
10A
Max Solar input (auto)
48V(for 24V battery) 24V(for 12V battery)
Equalization
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge
13.7V(default, adjustable)
Discharge stop
10.7V(default, adjustable)
Discharge reconnect
12.6V(default, adjustable)
Charge reconnect
13V
Voltage of open light
Solar Panel 8V(Light lights delay)
Voltage of close light
Solar Panel 8V(Light off delay)
USB output
5V/3A
Self-consume
<10mA
Operating temperature
-35°C~+60°C
Size
133.5*70*35mm
In stock
Only 4 left
- SKU
- L-4545
kr 449,00
Eks. MVA:
kr 359,20
Eks. MVA:
Description / Solcelle regulator PWM 12V/24V 20A
| Battery Voltage | 12V 24V Auto |
| Charging Current | 20A |
| Discharging Current | 10A |
| Max Solar input (auto) | 48V(for 24V battery) 24V(for 12V battery) | |||||
| Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | |||||
| Float charge | 13.7V(default, adjustable) | |||||
| Discharge stop | 10.7V(default, adjustable) | |||||
| Discharge reconnect | 12.6V(default, adjustable) | |||||
| Charge reconnect | 13V | |||||
| Voltage of open light | Solar Panel 8V(Light lights delay) | |||||
| Voltage of close light | Solar Panel 8V(Light off delay) | |||||
| USB output | 5V/3A | |||||
| Self-consume | <10mA | |||||
| Operating temperature | -35°C~+60°C | |||||
| Size | 133.5*70*35mm | |||||
More Information
| Produktkategori | Lader |
|---|---|
| Weight | 0.200000 |
| Tollkode | 8473308000 |
| Sertifiseringer | CE |
