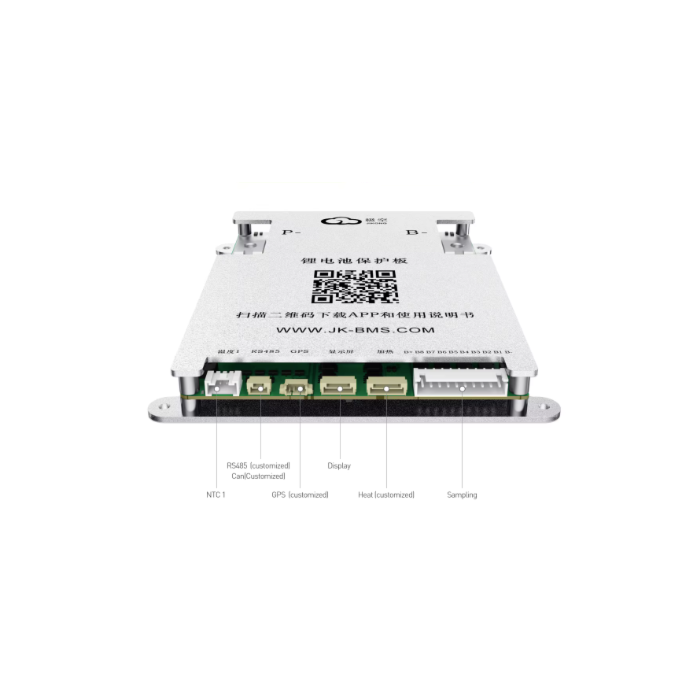

3S 4S - 8S 300A BMS for LiFePo4 med aktiv balansering, bluetooth og varme
Description / 3S 4S - 8S 300A BMS for LiFePo4 med aktiv balansering, bluetooth og varme
| Number of Battery Strings(Li-ion) |
3S-8S |
|---|---|
| Number of Battery Strings(Lifepo4) |
4S-8S |
| Number of Battery Strings(LTO) |
6S-8S |
| Balance Method |
Active Balance(Full State On) |
| Balance Current |
2A |
| Conductive Resistance in Main Circuit |
0.3mΩ |
| Continuous Charge Current |
300A |
| Continuous Discharge Current |
300A |
| Maximum Discharge Current(MAX 2min) |
450A |
| Over Charge Protection Current(ADJ) |
10-300A |
| Other Interfaces(Default) |
RS485 |
| Other Interfaces (Customized) |
CANBUS/HEAT |
| Size/mm |
153*136*18mm |
| Wiring Output |
Common Port |
| Single Cell Voltage Range |
1-5V |
| Voltage Acquistion Accuracy |
±5mV |
| Over Charge Protection Voltage |
1.2-4.35V Adjustable |
| Over Charge Relese Voltage |
1.2-4.35V Adjustable |
| Over Current Detect Delay |
2~120S Adjustable |
| Over Discharge Protection Voltag |
1.2-4.35V Adjustable |
| Over Discharge Relese Voltage |
1.2-4.35V Adjustable |
| Quantity of Emperature Detection |
3Pcs |
| Temp Protection |
YES |
| Short Circuit Protection |
YES |
| Coulomb Counter |
YES |
| Bluetooth Function |
Support for Android & IOS phone |
More Information
| Produktkategori | Lader |
|---|---|
| Weight | 0.200000 |
| Tollkode | 8473308000 |
| Sertifiseringer | CE |
